Machinery Exchange #19

Rim Manufacturing Machines – All Rim Lines Will Offered in Bulk and Individual Lots

15” No. 1 Rim Line

Bliss #48 Adj Bed Stamp Marking Press (Part-Size-Date)

Custom Copy of Grotnes 20” Rim Coiler, with Controls

Federal/Wean United 400 KVA Type F6 Flash Butt Welder, s/n 36472-10-2, with Hydraulic Clamp and Upset Power Supply, Adapamatic Control Weltronic Firing Panel

Hess 14” Hydraulic Weld Trimmer, Planisher, Nipper with Ejector and Controls, s/n 138

Horizontal 15” Hydraulic Flare Press, 75HP 12” Drive Cylinder with Controls

2 – Grotnes Model 1000 Hydraulic Rim Rollers 75 HP Spindle Drive, 20 HP Spindle Feed and Controls,  s/n C-3610-A-1 & s/n C-3610-A-2

Hydraulic Horizontal rim expander press, 75 HP, 12” Hydraulic Cylinder, 10 Segment Expanding Mandrel and Controls

Custom Conveyor Pass Through Rim Washer

Rim rolling and flare Tooling to Manufacture Rim Sizes:

13 x 5.5, 13 x 6, 13 x 7, 13 x 8, 13 x 10, 14 x 5, 14 x 6, 14 x 7, 14 x 8, 14 x 10, 15 x 4.5, 15 x 5, 15 x 6,        15 x 7, 15 x 8, 15 x 10.

Flare Tooling for All Diameters 13”-15”. Rim Tooling for JJ and LB Rim Profiles.

15” & 16” No. 2 Rim Line

Bliss #40 Adj. Bed Stamp Marking Press (Part-Size-Date)

Atlanta Grotnes 20” Coiler with Controls

Federal 600 KVA Type F7 Flash Butt Welder, Air Clamp, Hydraulic Upset, Weldtronic Firing Panel           s/n 10852 with Adapamatic Control

Morton 14” Self-Contained Hydraulic Scarfer, 20 HP with Controls s/n 1740

Hisey Wolf 18” Pedestal Grinder, 5 HP, s/n 79572

HPM 300 Ton Vertical 4 Post Down Acting Hydraulic Flare Press, 30”x30” Bed with Controls

Grotnes No. 5 Rim Roller 50 HP Main Drive, 30 HP Hydraulics, Extended Shafts with Controls

Grotnes No. 1100 Rim Roller 75 HP Spindle Drive, 20 HP Spindle Feed, Extended Shafts with Controls   s/n C-3070-A-C

HPM 350 ton Vertical 4 Post Hydraulic Press with Grotnes 10 Segment Expander Mandrel

Custom Conveyor Pass Through Rim Washer

Rim Rolling and Flare Tooling to Manufacture Rim Sizes:

15 x 10, 15 x 12, 15 x 13, 15 x 14, 16 x 6, 16 x 7, 16 x 8, 16 x 10, 16.1 x 11, 16.1 x 14, 16.5 x 6, 16.5 x 6.75, 16.5 x 8.25, 16.5 x 9.75, 16.5 x 12, 16.5 x 14

Flare tooling for 15”, 16”, 16.1”, 16.5” diameter rims. Tooling for JJ and LB rim profiles

No. 3 Aluminum Rim Line

Bliss 30 Ton OBI Stamp Marking Press (Part Size Date)

Littell 13” Sheet Coiler with Hydraulic and Controls s/n 74275

Toldeo Horn Flattening Press s/n 252

Bliss #25 Horn Press

Federal / Wean United 600 KVA Type F5 Flash Butt Welder, Hydraulic Clamp and Upset, Adaptamatic Controls, Weldtronic Firing panel, Special Factory Updates Package to Weld Aluminum Rims, s/n 36092-100004

Morton Hydraulic Weld Trimmer, Custom Tool Holders for Aluminum Rims, with Controls s/n 151

Miaster 30 Ton Rounding Horn Press

Williams and White 100 Ton Horizontal Hydraulic Bulldozer Flare Press

Hot Water Wash System with Gas Controls and Conveyor

3 – Grotnes No. 5 Rim Rollers, 30 HP Spindle Drive, 15 HP Hydraulics and Controls s/n 130231,              s/n 130232, & s/n 130233

Krueger 4 post Hydraulic Press 30 HP with Controls & Grotnes 10 Segment Expanding Mandrel,             s/n C-2640-A

2- Aluminum Edge Trim Lathes with Controls

Turn ACT 5 Aluminum Marking Machine with Controls

Rim rolling and flare tooling to manufacture rim sizes:

14 x 6, 15 x 6, 15 x 7, 15 x 8, 15 x 10, 16 x 7, 16 x 8, 16 x 10, 17 x 7, 17 x 8, 17 x 9.5, 18 x 7, 18 x 8, 18 x 10, 19 x 8, 19 x 10, 20 x 10

Misc. Rim Machines

Bohner & Kohle Model D50 HRH Fully Hydraulic Heavy Design with Profiling Spinning Lathe, 30 HP Main Motor, 580 RPM Spindle Speed, 73” Between Centers, 20.5” Center Height, 33.5” Longitudinal Traverse of Compound Slide, 10” Cross Traverse, 35.4” Hydraulic Traverse of Tailstock Sleeve, 39.5” Max. Diameter of Blank

3- Grotnes No. 5 Rim Rollers, 30 HP Drive, 15HP Hydraulic Spindle Feed

2 – Swift-Ohio Scarf Machines Sharing Power Unit

Shears

Hercules 1/2 ”x10’ Hydraulic Shear, s/n 5001200276229, with 80” Squaring Arm, Front Arm Support, 60” Front Operated Power Back Gauge, with platform

Cincinnati 5/8”x6’ Model 4306 Shear, s/n 13548, with 102” Squaring Arm, Roller Table Feed, Rear Operated Manual Back Gauge, Exit Conveyor, with platform and spare blades

Cincinnati 1/4”x12’ Model 1812 Shear, s/n 31371, with 130” Squaring Arm, Front Arm Support, 60” Front Operated Power Back Gauge, with platform and spare blades

Cincinnati 3/16”x10’ Model 1410 Shear, s/n 23051, with 8’ Squaring Arm, 2 Front Supports, Rear Operated Manual Back Gauge, with platform

Knuckle Joint Presses

Toledo 800 Ton No., 665 Knuckle Joint Press, 28”x32” Bed

Toledo 600 Ton Model 664 Knuckle Joint Press, 24”x28” Bed

Toledo 400 Ton No. 663 Knuckle Joint Press, S/N 50693 24826, 20”X20” Bed

Toledo 400 Ton No. 663-A Knuckle Joint Press, S/N 28532 21718, 31”x32” Bed, Air Clutch

Toledo 400 Ton No. 663 Knuckle Joint Press, 20”x20” Bed

Bliss 400 Ton No. 663-H Knuckle Joint Press, 30”x32” Bed, 10” Stroke, 19” Shut Height, Air Clutch

Bliss 400 Ton No. 24A Knuckle Joint Press. s/n T-33271, 31”X31” Bed

Rigid Press

Cincinnati 600 Ton Model Rigid-Press 36”x34” Bed, 8″ Stroke, Air Clutch s/n 10270

Straight Side Presses

Bliss No. 308 Straight Side Single Crank Press, s/n 89762, 24”x24” Bed, Air Clutch

2 – Bliss No. 78-1/2 Straight Side Single Crank Presses, s/n 6209 & s/n 6342, Both with Die Cushion

Hydraulic Presses

HPM 500 Ton Hydraulic Press, s/n 46-357, 32”x48” Bed, 24” Stroke, with Die Cushion

HPM 3000 Ton Shell Press 3 – Post Self Contained Hydraulic Press, 48” Between Posts, 36”x36” Bed       s/n 22242 with Die Cushion

4 – Post Self Contained Down Acting Hydraulic Press, 20”x36” Between Posts

4 – Post Down Acting Hydraulic Press, 24”x24” Between Posts, Pump & Tank

4 – Post Down Acting Hydraulic Press, 20”x20” Between Posts, Pump & Tank

Horn Presses

Ferracute 75 Ton Model CAG34-3/4 Back Geared Horn Press, 45 SPM, Air Clutch

Ferracute 75 Ton Model C-34-3/4 Back Geared Horn Press, 243”x32” Bed, Air Clutch

Toledo N0. 78-HA Horn Press, s/n T-33188, 28”X42” Bed

2 – Bliss Model 40 Horn Presses with Air Clutch

Bliss Model 40M Horn Press

Rousselle 40 Ton Model 40 H Horn Press

Minster 32 Ton Model 10-4 Horn Press, s/n 10-4-6398, 5” Stroke

Press Room Dies

Agricultural:

6 bolt on 6” circle: 14”-16” Diameter, set includes 3 blank dies, 3 form dies, 1 pierce die, 1 bolt pattern restrike die, includes all die sets, manufactured by Swan Engineering

8 bolt on 8” circle: 15”-16” Diameter, set includes 2 blank dies, 2 form dies, 1 pierce die, 1 bolt pattern restrike die, includes all die sets, manufactured by Swan Engineering

4 bolt on 5” circle, 5 bolt on 5 ½” circle: 14”-15” Diameter, set includes 2 form dies, 2 bolt pattern lump dies, 2 bolt pattern pierce dies, 2 center hole dies, includes all die sets

OEM:

13” Diameter, set includes 1 blank die, 2 form dies, 1 bolt pattern pierce die, 1 center hole die

15” Diameter, set includes 1 blank die, 2 hat dies, 5 form dies, 5 pierce dies, 1- hub cap dimple die

16” diameter, set includes, 1 blank die, 1 hat die, 2 form dies, 2 pierce dies

RV/Supertrucker:

13” Diameter, set includes, 1 blank die, 2 form dies, 3 lump dies, 2 spoke dies, 4 bolt pattern pierce dies, 2 center hole dies

14” Diameter, set includes, 1 blank die, 1 form die, 2 spoke dies

15” Diameter, set includes, 1 blank die, 2 form dies, 5 spoke dies, 6 lump dies, 6 bolt pattern pierce dies, 2 center hole dies

16” diameter, set includes, 2 form dies, 2 spoke dies, 2 lump dies, 2 bolt pattern pierce dies

Stock Car:

15” Diameter, set includes, 1 form die, 3 lump dies, 1 spoke die

Modified Stock Car Center:

15” Diameter, set includes, 1 blank die, 1 form die, 1 spoke die, 1 bolt pattern pierce die, 1 center hole die

Circle Welders

Auto Weld Continuous Weld System with 4 – L-Tec 450 Amp Model V1-450A Welders, s/n, D88C-78522, D88C-80143, D88C-84493, & D88C-84513, with Model Mig-35 Wire Feeders

Auto Weld Continuous Weld System with Airco 650 Amp Aircomatic Welder, s/n HD685287, 3 – Airco 600 Amp Model CV-600 Welders, s/n RH009023, RG810107, & RG807145, with Wire Feeders

Toolroom Machines

Springfield 25”/35”x52” Heavy Duty Toolroom Lathe, 24” 3-Jaw Chuck, Inch Threading, Taper Attachment, 2-1/2” Hole Thru Spindle

Summit 21”x60” Toolroom Lathe, 1500 RPM Spindle, 18” 4 Jaw Chuck, Inch/MM Threading, Taper Attachment – (Not Working)

Leblond 18”x48” Toolroom Lathe, 1250 RPM Spindle – (Not Working)

18”x42” Toolroom Lathe, 1500 RPM Spindle, 15” 3-Jaw Chuck, Inch/MM Threading, Tool Post

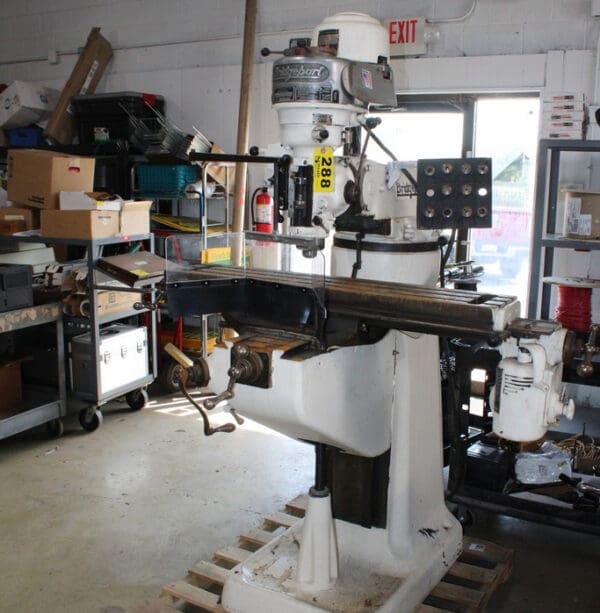

Bridgeport 1 HP Ram Type Vertical Mill, 42” Power Feed Table

Cincinnati No. 3 Vertical Mill, s/n 2A3V4H-63, 400 Spindle RPM – (Not Working)

Kearney & Trecker Model 10HP-3CH Plain Horizontal Mill, s/n 59-6800, with Vertical Head – (Not Working)

Gallmeyer& Livingston 12”x36” No. 55 Hydraulic Surface Grinder, s/n 55064, with Electromagnetic Chuck

Brown & Sharpe No. 2 Cylindrical Grinder

Cincinnati Bickford 4’ Arm 11” Super Servicer Radial Drill, s/n 2E-103 with Box Table

Rucoco Model 171P Power Hacksaw with Table

Grob 24” Type NS24 Vertical Band Saw, s/n 3299

Footburt Drill

Do All Model C-7 Horizontal Band Saw s/n 226-64238



Finishing System

5 – Stage Wash System, 75’ Long with Pump and Controls, Dry Off Section 25’ Long with Exhaust and Controls, 1500’ #458 Chain and Complete Overhead Rail System, 14-90*, 4-45*, 6 Dips, 2 Main Drives,    2 – Take Ups, 30 Turns, Safety Baskets with Electrics and Controls.

Cincinnati Type 0800 Gas Fired Oven, 120’x15’x6’, Double Pass

2- Torit Bag Housings

4- Torit Cyclones with Piping, Motors, and Controls

American Air filter model C size 2400 Self Contained Dust Collector, Torit Cyclone and Blower

Misc. Machines

Dreis & Krump 1/2” x 10’ Power Apron Bending Brake

May Tool Model MTC-42V 3/5 Adj. Speed Circle Shear

Special Drum Welding Lathe with 650 Amp Power Supply, Wire Feeder, Mig Gun and Controls

Hydraulic Rim Aligner, 3HP Racine

Lockformer 20 Gauge Lockformer, s/n 206300

Compak-O-Matic Model PPK25 Welder, s/n 1455821, with Wire Feed

Maplewood 20” Roller

Walker Turner 20” Drill, s/n 1881

Bliss No. 28 OBI Press, s/n H22142

Warner & Swasey No. 1A Model M-470 Turret Lathe

Gisholt No. 5 Lathe – (Not Working)

Double End Buffing Lathes

Plant Equipment

Arrestall Self Contained Dust Arrestor

Dynamark Model 16/42 Lawn Tractor

Dump Hoppers*Pallet Racks*Corrugated Steel Tubs* Etc.
