Storage & Rack Manufacturer
Featured Assets
Fabricating, Roll Forming, Stamping Equipment, Complete Powder Coat Line, Late Model 10 Ton & 7-1/2 Ton Free Standing Hoist System, Bridge Cranes, Much More!
Asset List
Roll Formers

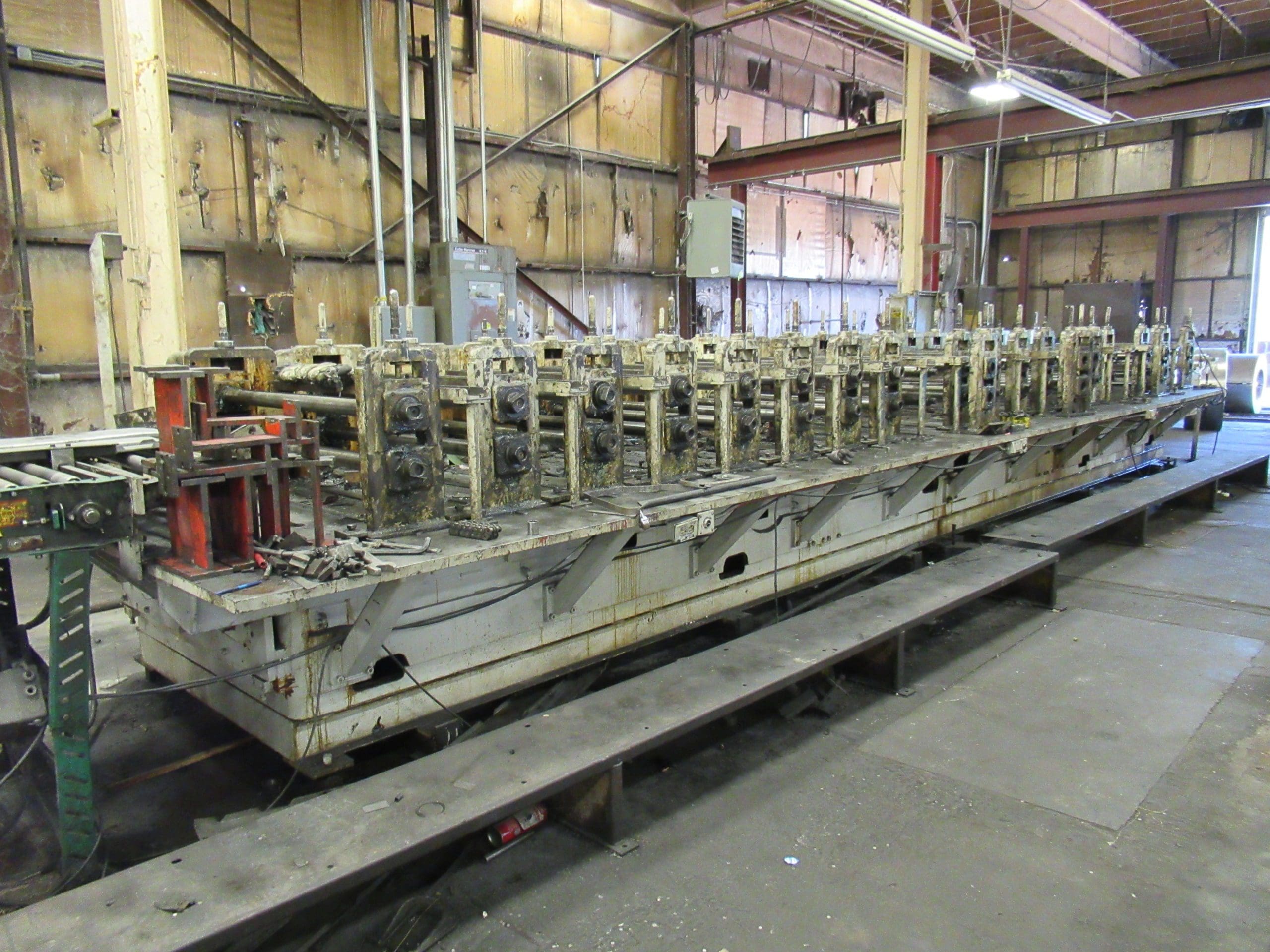

Yoder 20 Stand Roll Forming Line Consisting of: Yoder 20 Stand x 48” Roll Space Roll Former, s/n N/A, 2-1/2” Shaft Diameter, 50 HP Gear Drive Motor, Infeed Conveyor, 10’ Power Roller Conveyor, Roman 120 KVA 6-Head Spot Welder with Robotron 50 Controls, Transfer Conveyor, 2 – McKay 4 Post Mechanical Punch Stations, 27”x60” Between Posts, each with Air Clutch and Pedestal Control, (To Be Offered in Bulk and Separately)

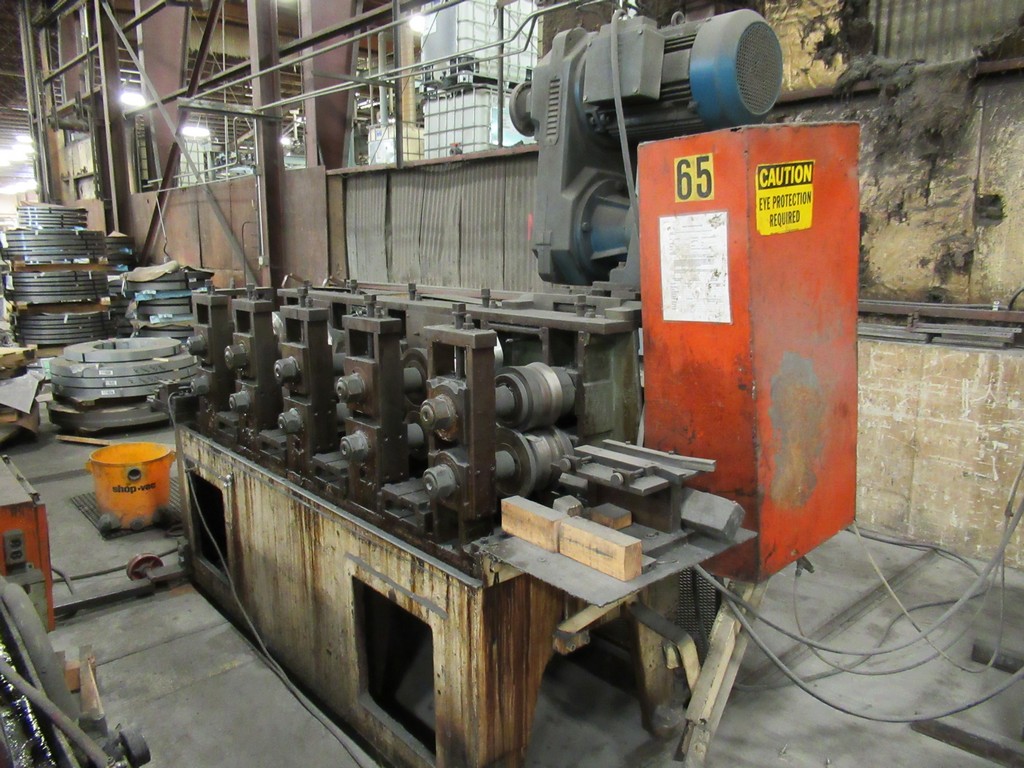

Ardcor 10 Stand Model F10-1-3/4-13 Roll Former, s/n 75-311, 1-3/4” Shaft Diameter, 13” Roll Space, 14” Horizontal Centers, 20 HP Motor
5 Stand Roller Former, 2” Shaft Diameter, 12” Roll Space, 20 HP Motor
Press Brakes
Piranah 175 Ton Model 175-12 Hydro-Mechanical Press Brake, s/n 17512-1041, 14’ Overall Length of Bed, 10’6” Between Housings, 3/16”x12’ Bending Capacity, 8” Stroke, 17” Shut Height, Removable Angle Plates
Piranah 175 Ton Model 175-12 Hydro-Mechanical Press Brake, s/n 17512-1040, 14’ Overall Length of Bed, 10’6” Between Housings, 3/16”x12’ Bending Capacity, 8” Stroke, 17” Shut Height, Lower Die Holder
Dreis & Krump 175 Ton Model 175-F-10 Hydraulic Press Brake, s/n H-1513 (New 1983), 10’ Overall Length of Bed, Automec 2-Axis CNC 1000 Back Gauge, Lower Die Holder
HTC 100 Ton Model 100-10H Hydraulic Press Brake, s/n 10S2T2468, 10’ Overall Length of Bed, Autogauge 2-AxCNC 1000
Dreis & Krump 275 Ton Model 275-D-8 Press Brake, s/n 9520, 10’ Overall Length of Bed, Lower Die Holder
Verson 200 Ton Model B910-200 Press Brake, s/n 18642, with Air Clutch, Lower Die Holder
Cincinnati 115/225 Ton Series 9 Press Brake, s/n 34557, 10’ Overall Length of Bed, Air Actuated Mechanical Clutch
Dreis & Krump 115 Ton Model 4510-D Press Brake, s/n P8403, 3/16”x10’ Capacity, 10’ Overall Length of Bed
Dreis & Krump 90/110 Ton Model 810-M Press Brake, s/n L15335, 10’ Overall Length Bed, with Flanged Ram, Air Clutch, Pedestal Palm Buttons
Dreis & Krump 100 Ton Press Brake, s/n 5995, 10’ Overall Length of Bed, Lower Die Holder
Dreis & Krump 36/55 Ton Model 46B Press Brake, s/n L-15073
Verson 45 Ton Model 2050 Press Brake, s/n 14270-2050, 2-1/2” Stroke
Presses & Accessories
Stamtec 160 Ton Model G1-160-S Gap Frame Press, s/n G1-160S-0008 (New 1985), 10” Stroke, 17.5” Shut Height, 25-40 SPM, Variable Speed Drive, Air Clutch
Minster 75 Ton No. 7-101 OBI Press, s/n 7-101-21986 (New 1975), 4” Stroke, 14.5” Shut Height, 24”x36” Bolster, 90 SPM, Air Clutch
Niagara 75 Ton Model AA4-1/2 OBI Press, s/n 35037, 4” Stroke, 15” Shut Height, 24”x36” Bolster, 90 SPM, with Air Clutch
3 – Toledo 93 Ton Model 92-1/2D Straight Side Presses
Coil Handling Servomax 12” Model SMX12H Servo Roll Feed, s/n SMX12H132 with Microprocessor Control
Coil Handling Servomax 12” Model SMX12 Servo Roll Feed, s/n 13840 with Microprocessor Control
Cooper Weymouth 24” Stock Straightener, s/n V2471546
Cooper Weymouth 10,000 LB. Stock Coil Reel, s/n 24P-1287, 24” Wide x 60” OD
American Steel Line 4,000 LB. Stock Coil Reel, s/n 4563, 24” Wide x 60” OD
Shear
Cincinnati 3/16”x10’ Model 1410 Shear, s/n 31844, with 36” Front Operated Power Back Gauge, 8’ Squaring Arm, 2- Front Supports
CNC Turret Punch
Amada 30 Ton Model Pega 305072 CNC Turret Punch, s/n AA570067, with Fanuc System 6M Control
Toolroom Equipment
Bridgeport 1 HP “J-Head” Ram Type Vertical Mill, s/N 12BR136039, 42” Table with Power Feed
Covel 16”x36” Hydraulic Surface Grinder, s/n 80-224 with Electro Magnetic Chuck
Mattison14”x36” Hydraulic Surface Grinder with Electro Magnetic Chuck
Wilton 4’ Arm 12” Column Radial Arm Drill with Box Table
Marvel No. 8 Universal Vertical Band Saw, s/n 810599
Peerless Model HB916U Horizontal Band Saw
Grob 18” Model NS Vertical Band Saw, s/n 9450
Sterling McDonough Drill Grinder, s/n DC8502
Pratt & Whitney Model 3B Jig Borer, s/n 28605
Spot Welders
Precision 60 KVA Multi-Spot Welder, Robotron Control, s/n 961938
Robotron 75 KVA Approx. Hand Held Spot Welders with Entron Control
Cranes & Jib Cranes
Free Standing Crane System Consisting of: Konecrane 10 Ton x Approx. 32’ Span Twin Girder Bridge Crane, s/n 2187830, with CXT 10 Ton Hoist, Radio Control, Uesco 7-1/2 Ton Single Girder Underslung Crane, s/n 93-420, with Pendant Control, Approx. 165’ Free Standing Runway with Uprights (To Be Offered in Bulk and Separately)
Robbins & Meyers 5 Ton x Approx. 70’ Span Bridge Crane with Pendant Control
5 Ton Underslung Crane x Approx. 30’ Span with Pendant Control
Industrial Crane 3 Ton Underslung Crane x Approx. 24’ Span with Pendant Control, s/n 40473
Powder Coat Finishing System
Eisenmann 24” Wide x 72” High Opening Washer, s/n A40-324-01, 3 Stage
Nordson Model XL-2001-S Electrostatic Paint System with Feed Hoppers, Filters, 16 – Guns, Sure Coat, Application Controller
Manual Powder Coat Booth with Dust Collector, Hopper
Eisenmann Convection Dry-Off Oven, s/n A40-324-02
Eisenmann Cool Down Booth
Heavy Duty Overhead Chain Conveyor Throughout System
4 – Nordson Hoppers
(To Be Offered in Bulk and Separately)
